Machine uses:                      Nuts                          Olive oil                   Cereal                  Caramels                       Super foods

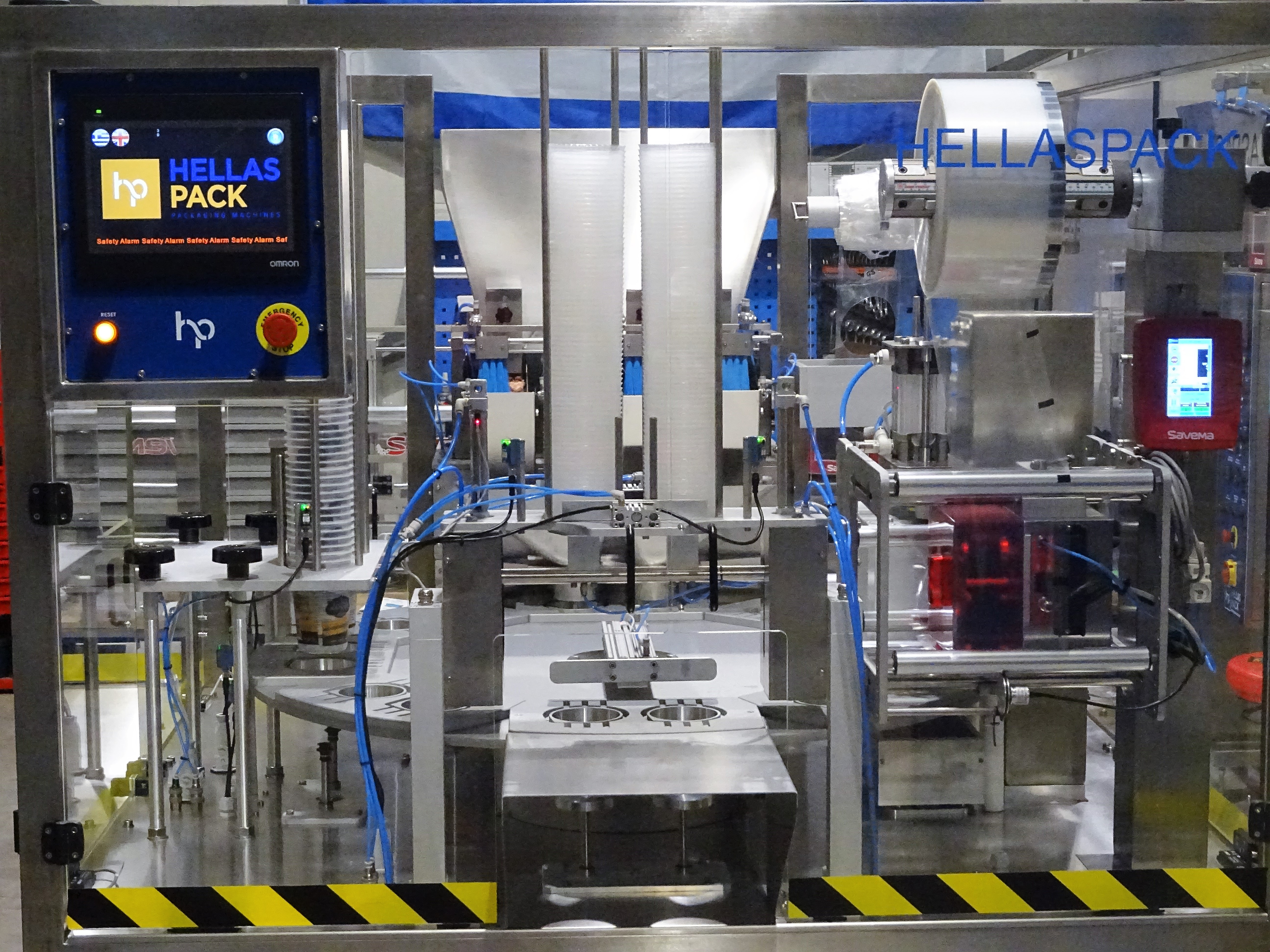

                                                                                        AUTOMATIC PACKAGING MACHINE FOR 2 CUPS SBF 200

---

AUTOMATIC ROTARY FILLING & SEALING MACHINE SBF 200 filling and packing 2 cups per once.

The SBF200 comes standard with the following automations:

- automatic film unwinding and winding mechanism.

- automatic feeding mechanism for the boat.

- product filling power supply.

- automatic film welding & cutting mechanism.

- cup output mechanism (2 cups per cycle of the machine).

The SBF200 has a programmable logic controller (PLC) and is operated with a 10.4'' colorful digital touch screen with an easy menu in English & Greek
In addition to the options and settings that the operator can choose, the screen displays the flow of the machine's operation as well as faults, with repair instructions.

 Also provided:
 Possibility of controlling and monitoring the operation of the machine remotely via computer or mobile phone.
 UV disinfection system.
 Accident protection.

Additional functions:
- Easy cup die change at low cost if owner has a second different cup.
- Thermal printer for film or aluminum foil.
- M.A.P. modified atmosphere system.
- Product feeding conveyor belt and output conveyor belt.
- Lid placement mechanism.

The entire machine is made of stainless steel and aluminum. All filling systems such as weighing from one head to six, volumetric, measuring, dosing for powder and liquid products are customized.
Finally, the SBF200, as well as all the packaging machines produced by Hellaspack, are Greek-made from quality European and Japanese components, fully comply with EU rules & meet all safety requirements for both the user and the product with CE certification.

Minimum maintenance.
Low cost of purchase.

‘SBF 200’   Technical specifications:

-Product dimensions:

Dimensions	cup(mm)	Round cup diameter(mm)
Minimum size	40x40	40
Maximum size	120 X100	120

-Maximum production speed:  40 piec./mint. (depending the weight and product)

-Weighing capacity: from 10 to 500gr

-Voltage supply:  220 / 380 V

-Total operation power:  3 KW

-Air supply: 6bars

-Air consumption: 0.8lt/cycle



   -Machine dimensions:

SBF 200	Length(mm)	Width(mm)	Height(mm)
Dimension	1500	1500	1800

- Weight: 685Kg

---
